透明結構陶瓷是經過獨特材料設計與特殊工藝制備的完全致密多晶陶瓷材料，它既能夠在特定光譜范圍內接近達到理論光學透過率、同時還能承受大的機械/熱載荷，是一類重要的先進結構/功能一體化材料。

與鋼化玻璃相比，透明結構陶瓷的楊氏模量、剪切模量、硬度、斷裂韌性以及斷裂強度等機械性能均為其3-5倍以上；透明結構陶瓷的光譜透過范圍覆蓋近紫外到中紅外區域；透明結構陶瓷的抗熱沖擊性、耐風砂雨蝕、環境耐候性顯著優于玻璃材料。透明結構陶瓷兼具優異的光學透明性能、優秀的機械性能和抗熱沖擊性能、優越的抗沖擊與耐腐蝕性能等，使其在特種光學窗口、透明防護系統、消費電子產品、半導體加工等領域均顯現出廣泛的應用前景。

關鍵指標	數值
晶格常數（?）	7.983
密度（g/cm3）	3.640
平均晶粒尺寸（μm）	60
楊氏模量（GPa）	288±7
泊松比	0.267
彎曲強度（MPa）	395
斷裂韌性（MPa?m1/2）	2.56
維氏硬度（@1 kg）（GPa）	14.8±0.23
光學折射率（@589.3nm）	1.7327
Abbé number	73.66
熱導率（W/m?K）	11.79@32oC
熱膨脹系數（30-200oC）（×10-6）	6.14

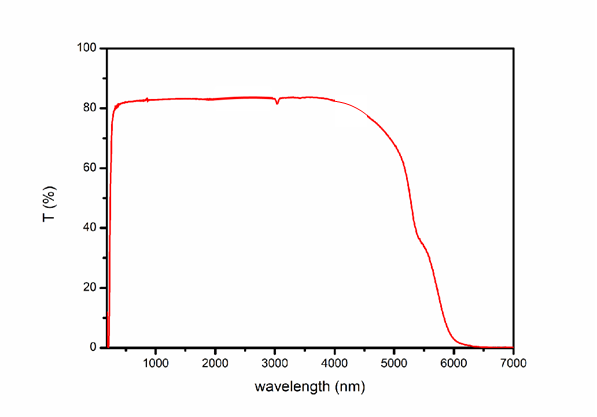

透過率曲線

Transparent Structural Ceramics

The transparent structural ceramic is a kind of fully dense polycrystalline material fabricated through unique material design and processing. It is an advanced material with integrated structural/ functional properties, which can not only approach to the theoretical optical transmittance in a specific spectral range but also withstand high mechanical and thermal loads.

Compared with tempered glasses, the mechanical properties of the transparent structural ceramic, such as Young's modulus, shear modulus, hardness, fracture toughness, and fracture strength, are more than 3 to 5 times higher. The optical transmittance of the transparent structural ceramic covers from near ultraviolet to middle infrared region, while resistances of thermal shock, sand erosion, and weather significantly surpass those of glasses. The combination of outstanding properties endows the transparent structural ceramic with wide application prospects in special optical windows, transparent armor system, consumer electronics, semiconductor processing, etc fields.
